Customer Background
Customer BackgroundCompany Type: Honeycomb paper products and corrugated packaging manufacturer
Main Business: Packaging inserts, cushioning pads, honeycomb board structural components
Location: Selangor, Malaysia
Core Capability: In-house design team with spatial structure and visual merchandising design capability
Transformation Direction: Extending from packaging inserts to commercial visual merchandising display stands, exhibition props, and brand display installations
Challenges
The company aimed to enter the commercial visual merchandising display market but faced three core obstacles:
- Long Traditional Sampling Lead Time: Display stands involve numerous styles, small batches, and frequent revisions. Traditional die-cut sampling required 3-7 days, unable to match brand clients' rapid iteration demands.
- Difficulty in Multi-Category Parallel Production: When running multiple projects simultaneously, a single machine struggled to handle both small-part sampling and large-panel production.
- High Material Adaptability Requirements: Honeycomb board thickness ranges widely (5-60mm), requiring machines capable of both precision half-cutting and full-through cutting without thermal damage or core layer crushing.
Solution

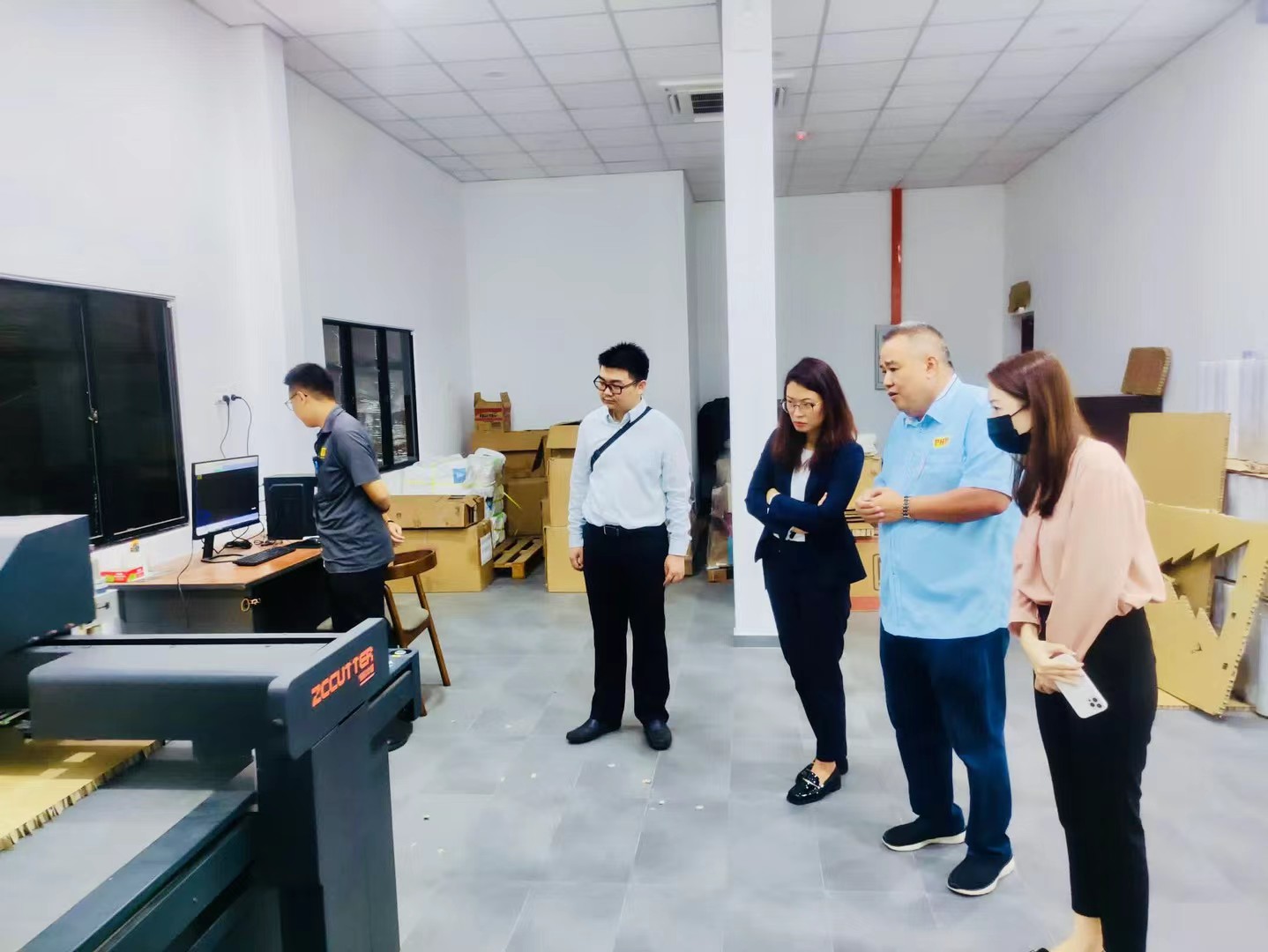

The customer selected three ZCCUTTER machines to build a gradient production line:
ZCRB1410 (1400×1000mm Dual Knife Head)

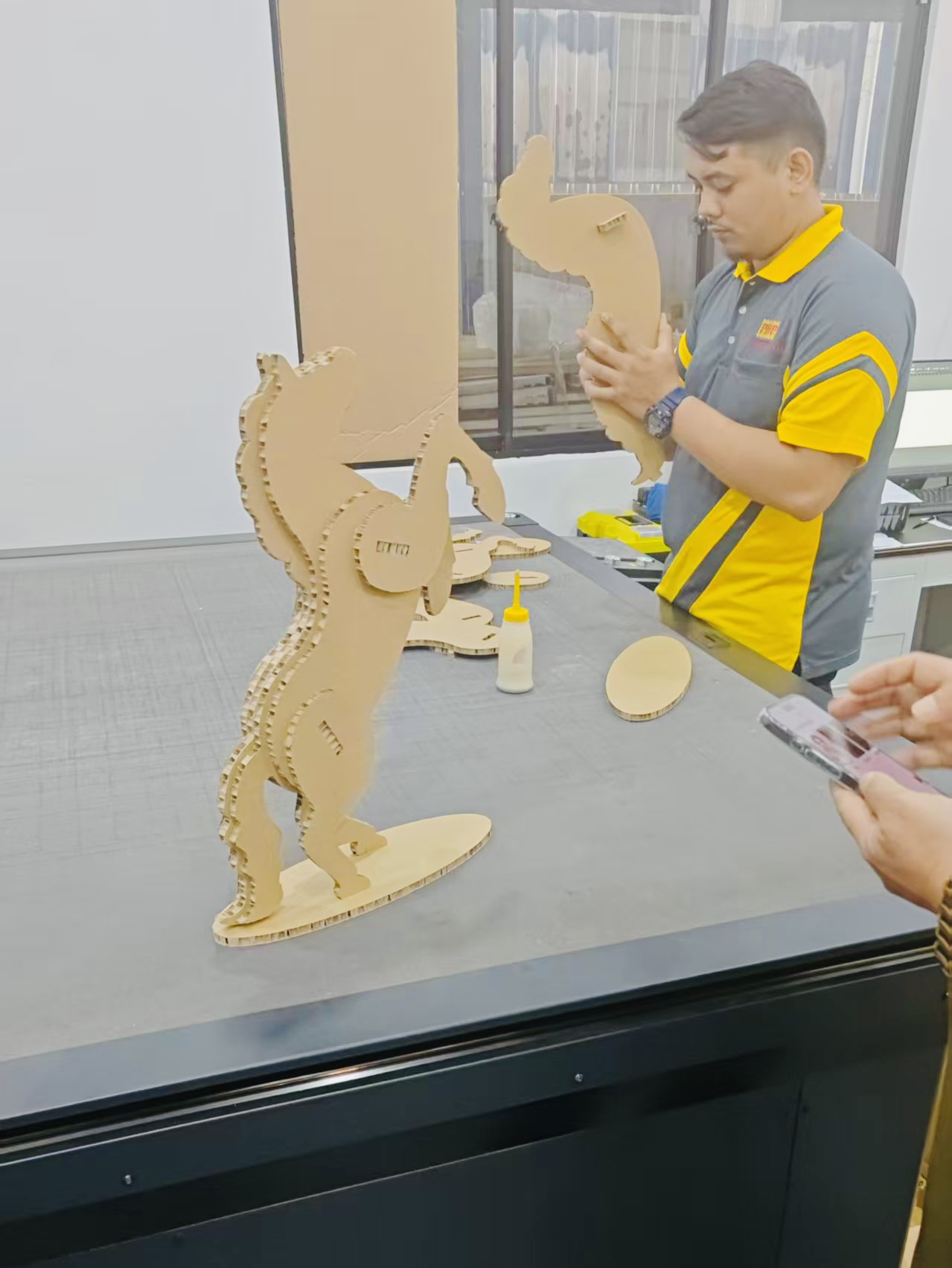

Role: Design team same-day sampling machine
Suitable for: New style small-part trial cutting, interlocking structure validation, accessory prototyping
Process: Dual knife synchronous cutting + creasing
ZCRB2516 (2500×1600mm Dual Knife Interchange)
Role: Primary production machine for mid-size display stands
Suitable for: Display stand panels, shelf inserts, desktop display items batch cutting
Process: Dual knife interchange — one knife cuts contours, the other handles creasing/V-grooving
ZCRD3016 (3000×1600mm Dual Beam Four Knife Head)
Role: Flagship machine for large-scale installation final assembly

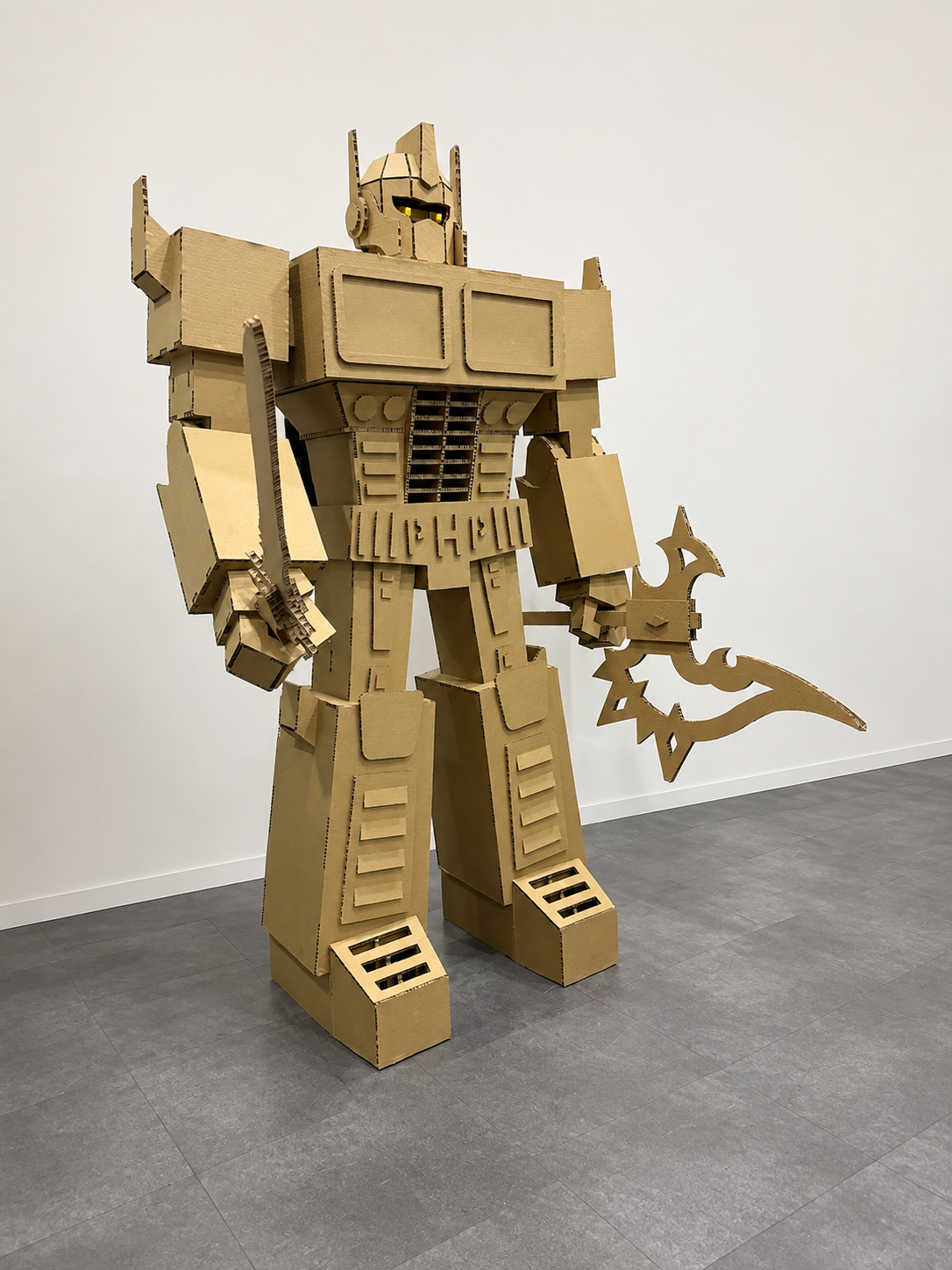

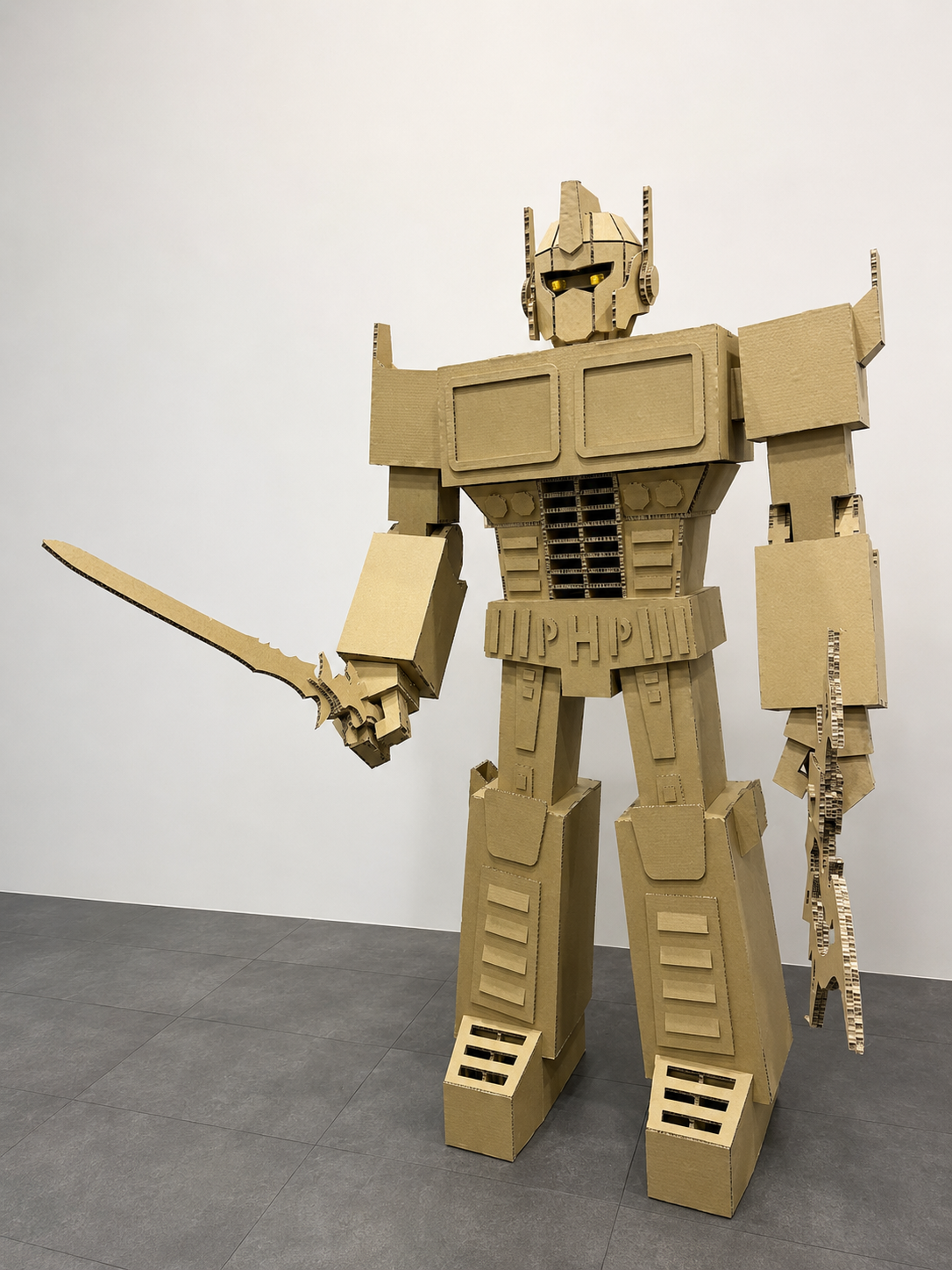

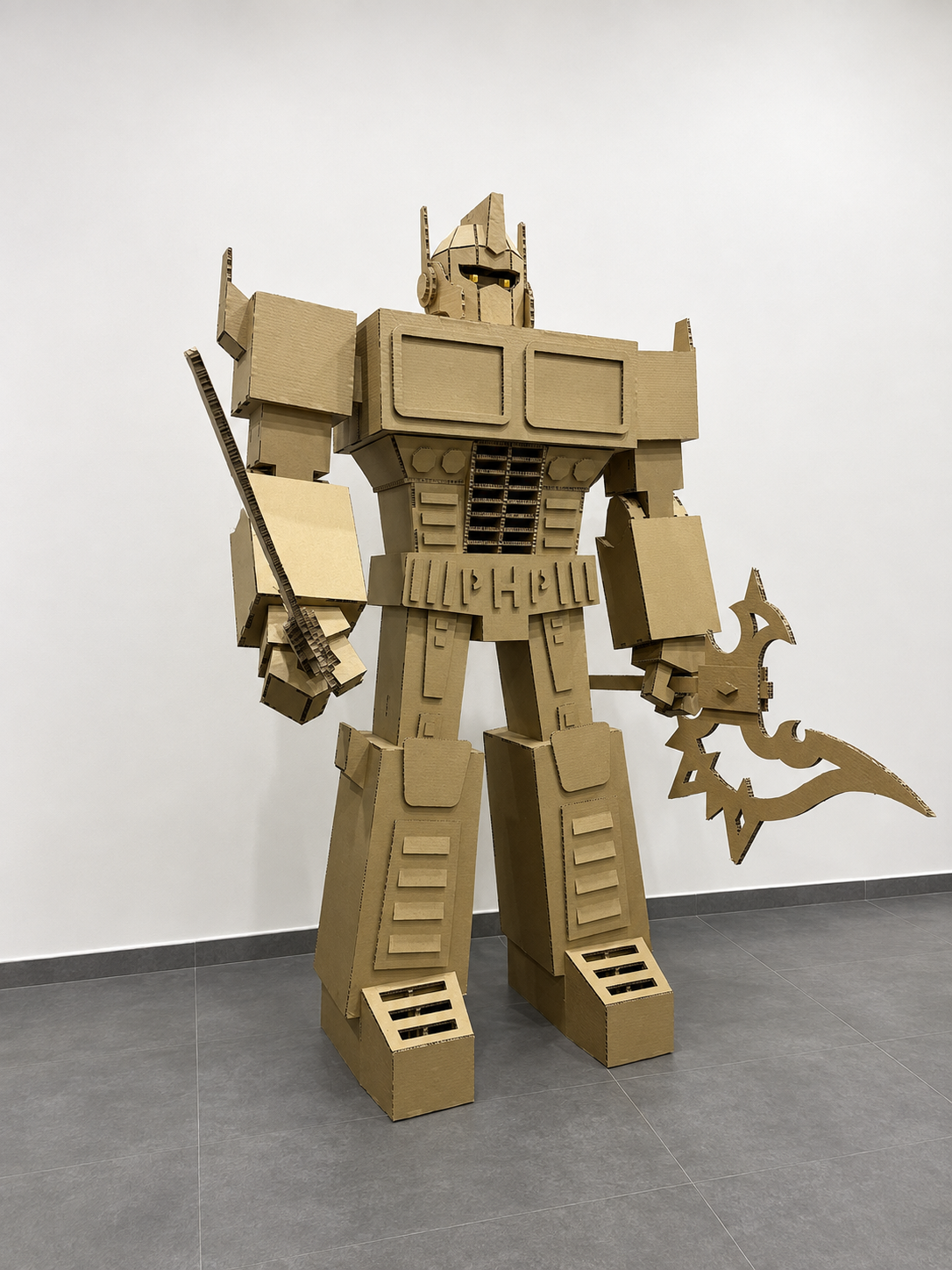

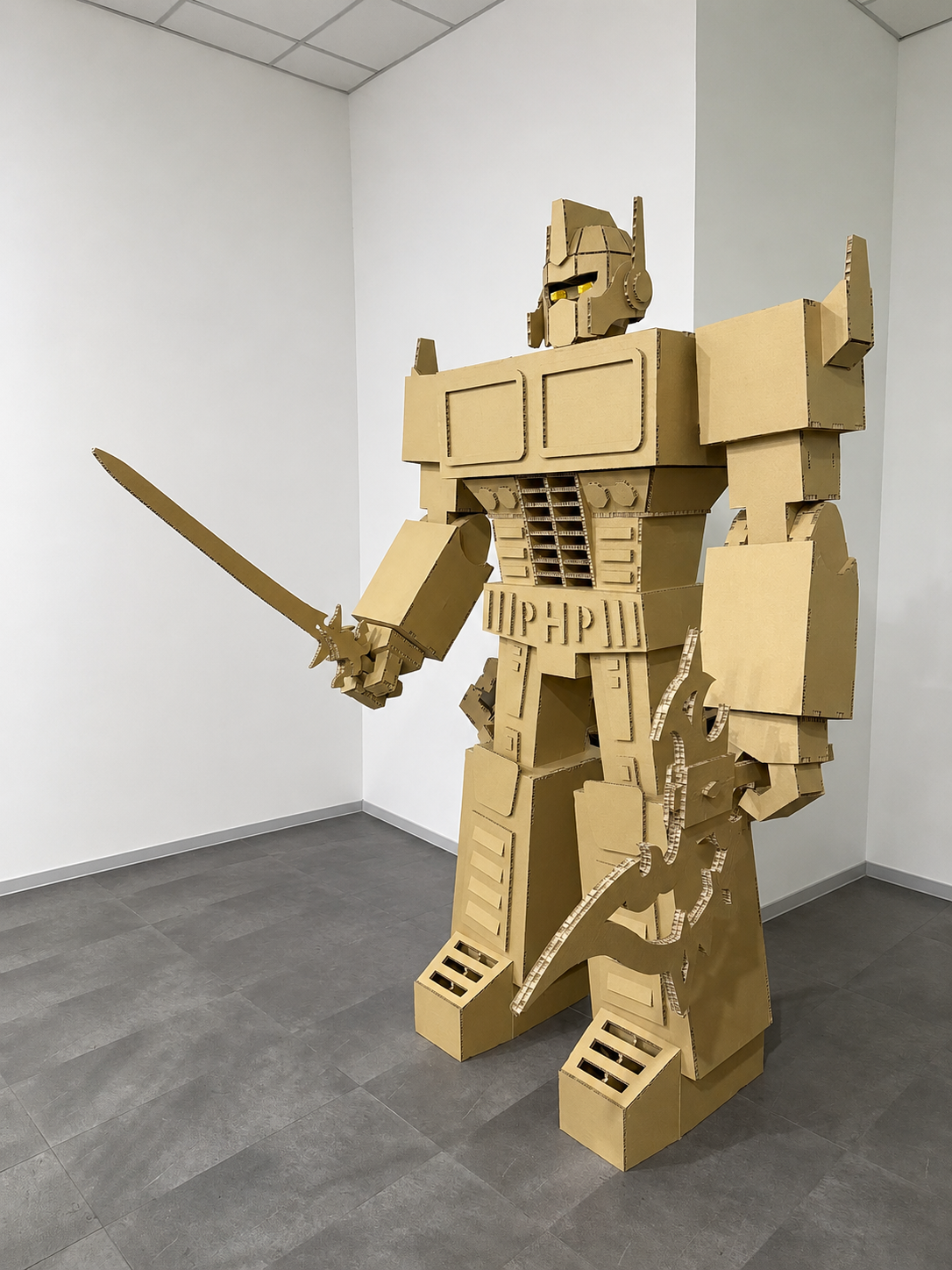

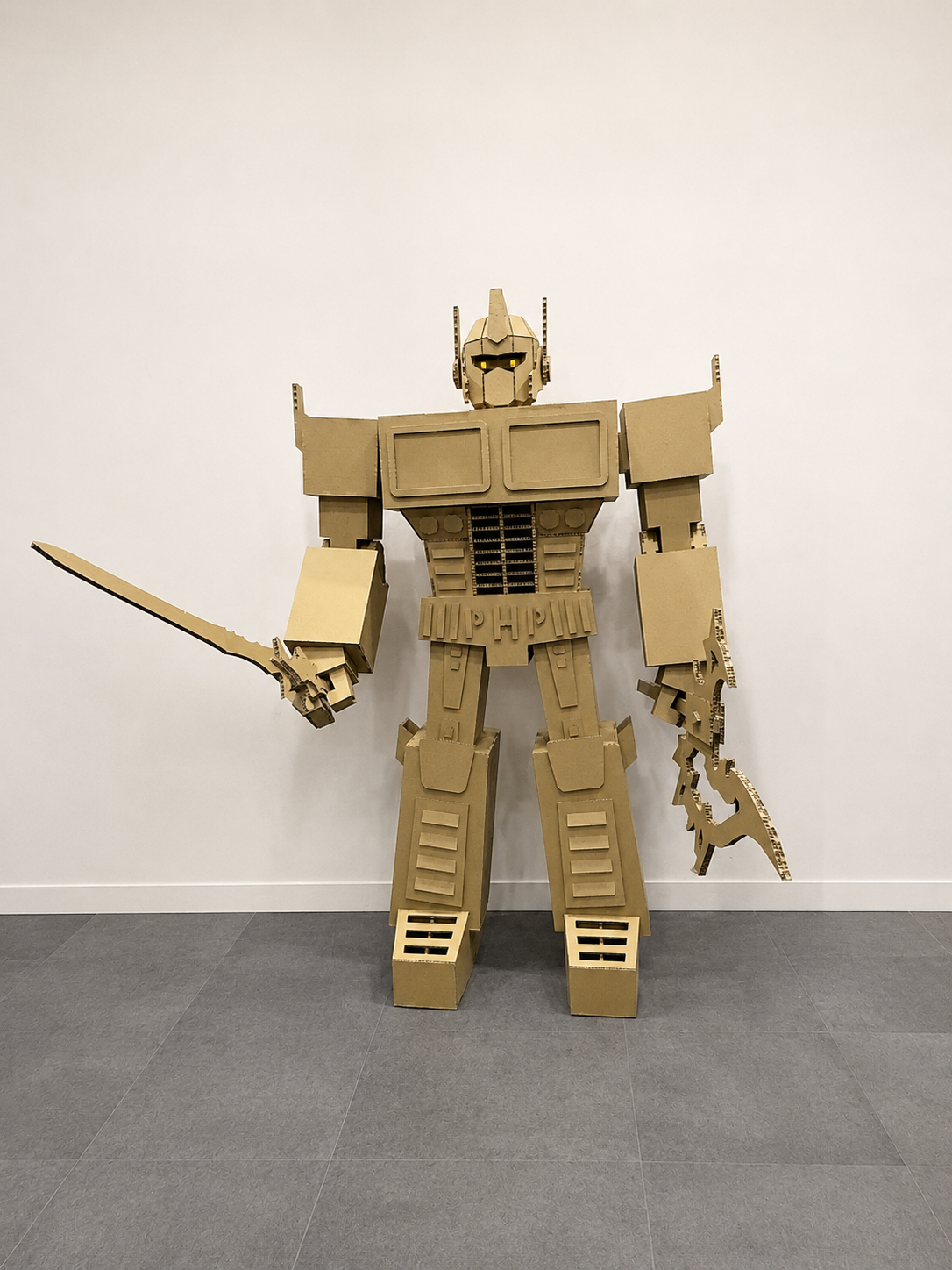

Suitable for: 3-meter robot main bodies, floor-standing display stand large panels, complex irregular structural components
Process: Four knives simultaneously executing contour full-cut, creasing, half-cut, and interlocking slots
All three machines share ZCCUTTER's proprietary motion control system and AI1500 process library. After CAD drawings are modified, the system automatically dispatches jobs to the corresponding machine based on component dimensions — no manual scheduling required.
Implementation Results
| Metric | Before | After |
|---|---|---|
| Single-Part Sampling Lead Time | 3-7 days (die-making) | Same-day sampling |
| Parallel Prototyping Capacity | 1-2 styles/week | 5-8 styles/week |
| Maximum Single-Pass Processing Area | Relied on outsourcing | 3000×1600mm |
| Extra-Long Part Joint Precision | Manual alignment, error ≥2mm | Interlocking tenon joint, seam <0.5mm |
| Multi-Process Switching | Machine stop for knife/die change | Four-knife synchronous one-pass forming |
Customer Testimonial
"From packaging inserts to commercial visual merchandising, what we needed was not just machines, but a digitalized production system that empowers our design team to create freely. With ZCCUTTER's three machines, our ideas can become physical products on the very same day."
— Head of Design Team, Malaysian Client
Equipment Configuration Overview
| Model | Working Area | Knife Configuration | Core Application |
|---|---|---|---|
| ZCRB1410 | 1400×1000mm | Dual Knife Head (Electric Oscillating Knife + Creasing Wheel) | Small-part sampling and structural validation |
| ZCRB2516 | 2500×1600mm | Dual Knife Interchange | Mid-size display stand batch production |
| ZCRD3016 | 3000×1600mm | Dual Beam Four Knife Head | Large installations and complex structural components |
FAQ
Q: What equipment configuration is needed for a packaging insert company to transition into commercial visual merchandising display stands?
A: A recommended three-machine gradient combination: ZCRB1410 (1400×1000mm) for small-part sampling and structural validation, ZCRB2516 (2500×1600mm Dual Knife Interchange) for mid-size display stand batch production, and ZCRD3016 (3000×1600mm Dual Beam Four Knife Head) for large installations and complex structural components. All three machines share the same control system and process library, enabling automatic job dispatch based on component dimensions.
Q: What is the maximum size achievable for honeycomb board commercial visual merchandising display stands?
A: A single ZCRD3016 has an effective working area of 3000×1600mm, capable of processing components up to 3 meters in one pass. Components exceeding 3 meters are cut in sections using interlocking tenon joint structures, with joint seams less than 0.5mm — no full-panel splicing equipment required.
Q: What advantages does ZCCUTTER digital cutting offer over traditional die-cut sampling?
A: No die-making required — cutting can resume immediately after design modifications; single-part sampling lead time compressed from 3-7 days to same-day output; multiple knives simultaneously execute contour cutting, creasing, half-cutting, and interlocking slots in a single pass; ideal for commercial visual merchandising scenarios requiring rapid iteration across multiple styles in small batches.
